Azure Internal Load Balancer

Internal Load Balancer:-

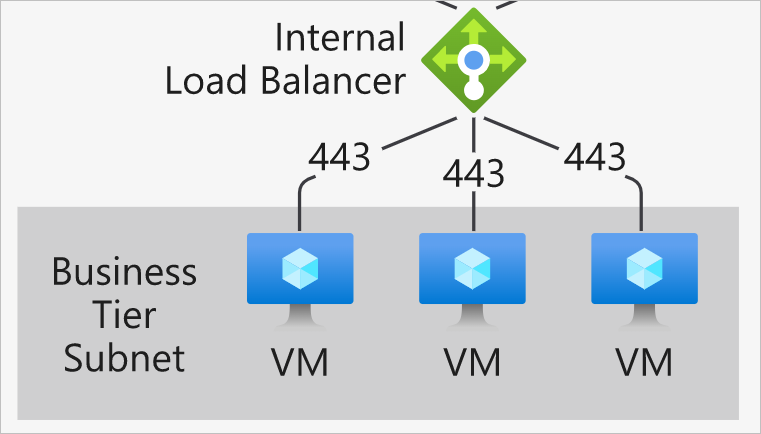

An Internal load balancer directs traffic only to resources that are inside a virtual network or that use a VPN to access Azure infrastructure.

It Enables 4 types of load balancing:-

Within a virtual network.
For a cross premies virtual network.
For multi-tier application.
For line of Business applications.

Azure Internal Load Balancer Labs:-

Step1. Create Virtual Network.

— myvnet, 10.0.0.0/16

— RG-ILB, East US

— mysubnet, 10.0.0.0/24

— Review + Create, Create.

Step2. Create 3 Virtual Machines. VM1, VM2, VMTest.

— Availability Set — MyAvailSet.

— Image — Windows-2019.

— Size — 2vCPU, 4RAM.

— VM1. Pass, RDP, HTTP, HTTPS

— Boot Diagnostics — off

— Review + Create, Create.

— Do the same for VM2 and VMTest.

— install webserver (IIS) on VM1, VM2

—> Go to C:\ Drive —> inetpub —> wwwroot —> Create index.html file and write some data into that file.

Step3. Create Load Balancer.

— Name — Web-LB

— Internal

— SKU — Standard, RG-ILB, East US.

— VNet — myvnet

— mysubnet, Next.

— Add frontend ip:

—FE-ip01

— MySubnet, Add, Save.

— Add backend pool:

— BP01

— Add — VM1, VM2, Add, Save.

— Add Load Balancing Rule — Add

— LB-Rule, FE-ip01, 80, 80, Save.

— Health probe:

— HP01, HTTP, Save.

— Review + Create, Create.

—>> Go to resource copy Web-LB-ip.

Step4. Go to 3rd VM

—> VMTest take RDP and connect.

—> Open I-Explorer and paste ip and check the details.

—> Wait 4 minutes and hit again and see the another VM data.
